Zl26 CB26 Brazed Plate Heat Exchanger Bphe Pump Evaporator Condenser Marine
Basic Info
| Model NO. | ZL26 |
| Connection Material | AISI316L/304 |
| Brazing Material | Copper/Nickel/100% Stainless Steel |
| Max Design Temperature | 225c |
| Min Design Temperature | -196c |
| Max Design Pressure | 45barg |
| Weight(Kgs) | 1.3+(0.12*Plate Number) |
| Stagnant Fluid Volume (L) | 0.025(Plate Number-2) |
| Max Fluid (L) | 18m3/H |
| Transport Package | Ce, UL Approved Plywood Box |
| Specification | 206*76*(9+2.3*Plate Number) |
| Trademark | YOJO |
| Origin | China |
| HS Code | 8419500090 |
| Production Capacity | 1800000pieces/Year |
Product Description
Product Dimension| Model | A(mm) | B(mm) | C(mm) | D(mm) | Thickness (mm) | Weight (Kg) | Stagnant Fluid Volume (L) | Design Pressure (Mpa) | Max Fluid (L) |
| ZL26 | 111 | 50 | 250 | 310 | 10+2.36N | 1.3+0.12N | 0.025(N-2) | 3/4.5 | 18m3/h |
Application
Refrigeration Systems:Evaporator,Condenser,Economizers and DesuperheatersAir dryerHeat pumpAbsorption chillerHVACRadiant Floor,Snow Melt,Boiler andSolar water heat exchangerDistrict heatingOther Industrial applications such as:Heat Recovery andOil Cooler: Hydraulic oil cooling, engine oil cooling, and fuel oil heating.Steam Heating.Flat plate heat exchangerBeer wort coolerMilk pasteurizationWind turbine oil coolerMarine oil cooler
YOJO Heat Exchanger Advantage:
High Efficiency
The embossed pattern of the YOJO's special heat transfer plates promotes high turbulence at low fluid velocities. The high turbulence results in very high heat transfer coefficients.
Compact Size
YOJO's brazed heat exchanger can be anywhere from 50% to 80% smaller than other types of heat exchangers. It requires less floor space due to the high thermal efficiency of the stainless steel. The plates are brazed together at high temperatures, allowing the heat exchanger to be compact, leak tight, and rugged.
Close Approach Temperatures
Close-approach temperatures of 1-2°F (0.5-1.0°C) are possible because of true counter flow and high heat transfer efficiency of the plates. This is an important factor in regeneration and heat recovery processes.
High Temperature and Pressure Ratings
YOJO's Brazed Plate Heat Exchanger maximum working pressures from 300 psi to 650 psi, and temperature ratings of 350°F.
YOJO BPHE Product

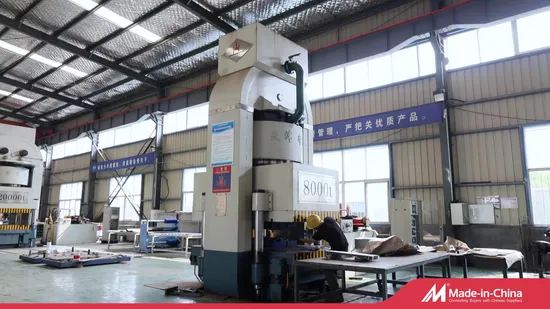

YOJO Factory Show
